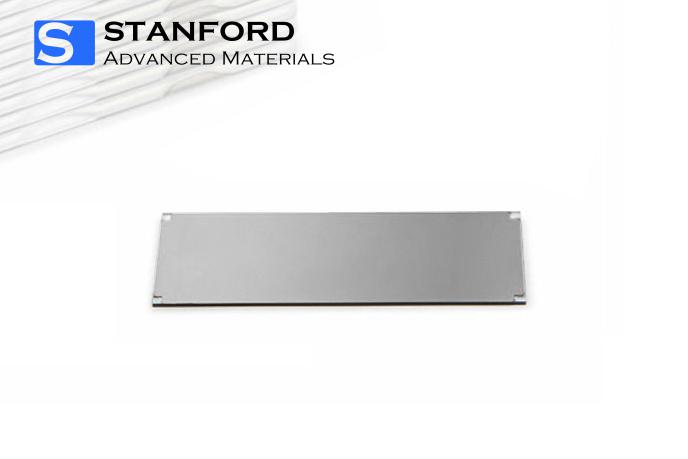

Iridium (Ir) Coated Glass is a borosilicate glass substrate coated with a uniform iridium thin film through controlled physical vapor deposition. Stanford Electronics applies strict process control and electron microscopy inspection to ensure coating consistency, adhesion, and surface integrity. This approach minimizes contamination while delivering stable optical and barrier performance required for semiconductor processing. In-process metrology verifies film thickness and uniformity, supporting reliable and repeatable use in advanced fabrication environments.
Iridium (Ir) Coated Glass features a uniform iridium layer deposited onto borosilicate glass using precision thin-film techniques. The iridium coating provides chemical inertness and serves as an effective diffusion and contamination barrier during semiconductor processing. Consistent film quality is essential for maintaining optical stability and process reliability, particularly in high-temperature or chemically aggressive environments.
| Parameter | Value |
|---|---|
| Material | Iridium, Borosilicate |
| Purity | Ir: ≥99.9% |
| Form | Substrate |
| Dimensions | 25 × 75 × 1 mm |
| Adhesion Layer | Titanium (30 Å) |
| Ir Thickness | 1000 Å |
| Coating Area | Single size (or customized) |
The above product information is based on theoretical data and is for reference only. Actual specifications may vary.
Semiconductor Manufacturing
Used as a process control substrate in photolithography, where uniform reflectivity helps reduce exposure variability.
Applied as a diffusion and contamination barrier in integrated circuit fabrication to enhance device reliability.
Thermal and Crystal Growth Applications
Utilized in high-temperature crystal growth systems, benefiting from iridium’s thermal stability and chemical resistance to protect glass substrates from degradation.
Iridium (Ir) Coated Glass is individually wrapped in anti-static materials and placed in cushioned protective packaging to minimize mechanical damage and particulate contamination. Products are stored under cool, dry conditions to preserve coating integrity. Custom packaging, labeling, and handling solutions are available upon request.
Metal-coated glass substrates play a critical role in modern semiconductor manufacturing by combining the optical properties of glass with the chemical and thermal stability of noble metals. Advances in thin-film deposition have significantly improved adhesion and uniformity, enabling iridium-coated glass to support increasingly demanding semiconductor and materials research processes.
|
Parameter |
Value |
|
Material |
Iridium, Borosilicate |
|
Purity |
Ir: ≥99.9% |
|
Form |
Substrate |
|
Dimensions |
25*75*1 mm |
|
Adhesion Layer |
Titanium (30 Å) |
|
Ir Thickness |
1000 Å |
|
Coating Area |
Single Size (or customized) |
*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.
