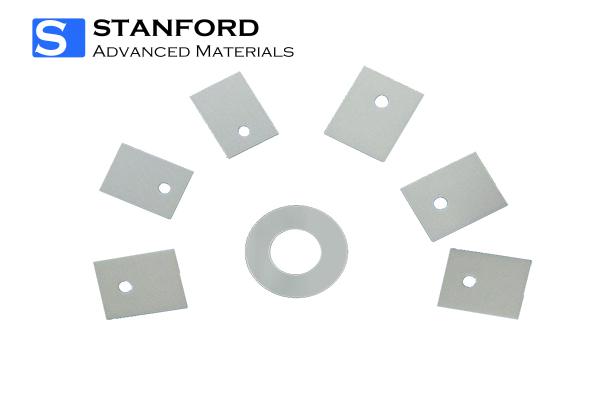

(Discontinued) BC0970 Beryllium Oxide Ceramic Substrates, BeO

Catalog No
BC0970
Size
Customized
Material
Beryllium Oxide
CAS Number
1304-56-9
Purity
99%
Bulk Density
3.01 g/cm3

SAM's beryllium oxide ceramic substrates are made of high purity beryllium oxide ceramics. SAM provides high-quality beryllium oxide ceramic products including heat sinks, crucibles, washers, thermocouple tubings, and other custom-made substrates.

Related: Beryllium Oxide Ceramic Heat Sinks, Beryllium Oxide Ceramic Crucibles

INQUIRY
Beryllium Oxide Ceramic Substrates, BeO
Beryllium Oxide Ceramic Substrates, BeO
Beryllium Oxide Ceramic Substrates, BeO
Beryllium Oxide Ceramic Substrates, BeO
Description
Specifications
Videos
Reviews
(Discontinued) BC0970 Beryllium Oxide Ceramic Substrates, BeO Description

Beryllium Oxide Ceramic Substrates Description

Beryllium oxide ceramic substrates are made of high purity beryllium oxide ceramics. Beryllium oxide, or beryllia, is the best ceramic thermal conductor and competes with the most conductive metals, and its electrical isolation is equivalent to that of alumina and the best electrical insulators. Beryllium oxide ceramic substrates are produced by ceramic fabrication techniques, followed by sintering at temperatures above 1500 °C. By applying precision fabricating techniques, close dimensional tolerances and high surface smoothness can be obtained for maximum compatibility with metal components. BeO substrates possess a unique combination of thermal, dielectric, and mechanical properties, and they are highly desirable in electronic applications.



Beryllium Oxide Ceramic Substrates Specifications

Testing Entries Testing Conditions Properties
Flexural Strength / 170MPa
Thermal Conductivity 25 250W/m·k
100 190W/m·k
Permittivity 1MHz 20 6.5-7.5
10GHz 20 6.5-7.5
Volume Resistivity 25 10^14Ω·cm
300 10^11Ω·cm

Beryllium Oxide Ceramic Substrates Applications

Beryllium oxide ceramic substrate is the ideal material used in many high-performance semiconductor parts for applications such as radio equipment. Beryllium oxide ceramic can insulate electronic devices electrically, and at the same time remove substantial quantities of heat from them to a chassis heat sink.  Beryllium oxide ceramic is used as a filler in some thermal interface materials such as thermal grease. Some power semiconductor devices have used beryllium oxide ceramic between the silicon chip and the metal mounting base of the package in order to achieve a lower value of thermal resistance than for a similar construction made with alumina. It is also used as a structural ceramic for high-performance microwave devices, vacuum tubes, magnetrons, and gas lasers.

Beryllium Oxide Ceramic Substrates Packaging

Our Beryllium Oxide Ceramic Substrates are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.

Beryllium Oxide Ceramic Substrates FAQs

  1. Can Beryllium Oxide Ceramic Substrates be customized for specific applications?

Yes, Beryllium Oxide Ceramic Substrates can be customized to meet the requirements of specific applications. Customization options include substrate size, shape, surface finish, and thermal conductivity.

  1. What are the fabrication methods for Beryllium Oxide Ceramic Substrates?

Beryllium Oxide Ceramic Substrates can be fabricated using various techniques, including dry pressing, tape casting, injection molding, and hot pressing. Each method offers advantages depending on factors such as substrate size, shape, and desired properties.

  1. What are the advantages of using Beryllium Oxide Ceramic Substrates?

Beryllium oxide offers exceptional thermal conductivity, second only to diamond among ceramics, making it highly desirable for applications where efficient heat dissipation is crucial.

Related articles:

What are the uses of Beryllium Oxide Ceramics?


(Discontinued) BC0970 Beryllium Oxide Ceramic Substrates, BeO Specifications
Testing Entries Testing Conditions Properties
Flexural Strength / 170MPa
Thermal Conductivity 25 250W/m·k
100 190W/m·k
Permittivity 1MHz 20 6.5-7.5
10GHz 20 6.5-7.5
Volume Resistivity 25 10^14Ω·cm
300 10^11Ω·cm
