CF2141 Ceramic Fiber Board

Catalog No
CF2141
Size
1200*100*5-80mm, 1000*600*5-80mm,1200*500*5-80mm
Material
Al2O3, SiO2, ZrO2, Fe2O3, Na2O, K2O
Appearance
White fiber board

Stanford Electronics has over 2 decades of experience supplying refractory ceramic fiber of high quality at competitive prices. We are also able to customize this product as per your specifications.

Related products: Ceramic Fiber, Ceramic Fiber Paper, Light Mullite Brick

INQUIRY

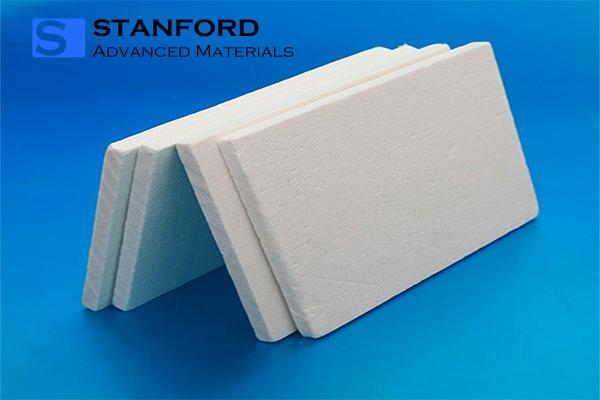

Ceramic Fiber Board
Ceramic Fiber Board
Description
Specifications
Reviews
CF2141 Ceramic Fiber Board Description

Description of Ceramic Fiber Board

Ceramic fiber is produced from high purity aluminosilicate material through a strictly controlled high-temperature furnace melting and fiberizing process. Ceramic fiber products are white and odorless, which is suitable for high-temperature applications up to 2300°F. Due to the resistance to high temperatures, good thermal stability, and significant energy-saving effects, ceramic fibers are gradually replacing traditional refractory brick refractories. Comparing to the ceramic blankets, it has higher strength and vacuum forming felt.



Advantages of Ceramic Fiber Board

- Faster temperature cycling
- Lower heat storage
- Lower fuel costs
- Increased productivity
- Lower installation cost
- Easier repairs
- Resistance to thermal shock



Specifications of Ceramic Fiber Board

Code

SCFB-1160

SCFB-1260

SCFBHP-1260

SCFB-1360

Max. working temperature(°C)

1100

1260

1260

1360

Melting point(°C)

<1100

1050

1100

1200

Color

White

White

White

White

Bulk density(kg/clarify)

250-400

250-400

250-400

250-400

Tensile strength

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

Al2O3 (%)

44

46

47-49

52-55

Al2O3+SiO2 (%)

96

97

99

99

Al2O3+SiO2+ZrO2 (%)

-

-

-

-

ZrO2 (%)

-

-

-

-

Fe2O3 (%)

<1.2

<1.0

0.2

0.2

Na2O+K2O (%)

≤0.5

≤0.5

0.02

0.2

Thermal conductivity Kcal/mh°C(W/mK), ASTM C201

400°C

0.085

0.085

0.085

0.085

600°C

0.19

0.12

0.12

-

800°C

0.19

0.16

0.16

-

Size

1200*100*5-80mm, 1000*600*5-80mm,1200*500*5-80mm, 900*600*5-80mm or customized

Applications of Ceramic Fiber Board

Refractory lining for industrial furnaces in walls, roofs, doors, stacks, etc
- Combustion chamber liners, boilers, and heaters
- Back-up insulation for brick and monolithic refractories
- Transfer of molten aluminum and other non-ferrous metals
- Expansion board joints
- Barrier against flame or heat
- Hot face layer for high velocity or abrasive furnace atmosphere

Ceramic Fiber Board FAQs

Q1: What is a Ceramic Fiber Board?

Answer: A Ceramic Fiber Board is a rigid, lightweight, and high-temperature insulating material made from ceramic fibers. It is designed for applications requiring high thermal insulation, structural integrity, and resistance to thermal shock.

Q2: What are the common applications of Ceramic Fiber Boards?

Answer: Common applications include use in furnaces, kilns, and other high-temperature industrial equipment as insulation linings, fire protection in buildings, thermal barriers in aerospace, and in high-temperature gaskets and seals.

Q3: How are Ceramic Fiber Boards manufactured?

Answer: Ceramic Fiber Boards are typically manufactured by combining ceramic fibers with binders and additives, forming them into a sheet or board shape, and then curing them at high temperatures to achieve the desired mechanical strength and rigidity.

CF2141 Ceramic Fiber Board Specifications

Code

SCFB-1160

SCFB-1260

SCFBHP-1260

SCFB-1360

Max. working temperature(°C)

1100

1260

1260

1360

Melting point(°C)

<1100

1050

1100

1200

Color

White

White

White

White

Bulk density(kg/clarify)

250-400

250-400

250-400

250-400

Tensile strength

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

Al2O3 (%)

44

46

47-49

52-55

Al2O3+SiO2 (%)

96

97

99

99

Al2O3+SiO2+ZrO2 (%)

-

-

-

-

ZrO2 (%)

-

-

-

-

Fe2O3 (%)

<1.2

<1.0

0.2

0.2

Na2O+K2O (%)

≤0.5

≤0.5

0.02

0.2

Thermal conductivity Kcal/mh°C(W/mK), ASTM C201

400°C

0.085

0.085

0.085

0.085

600°C

0.19

0.12

0.12

-

800°C

0.19

0.16

0.16

-

Size

1200*100*5-80mm, 1000*600*5-80mm,1200*500*5-80mm, 900*600*5-80mm or customized
