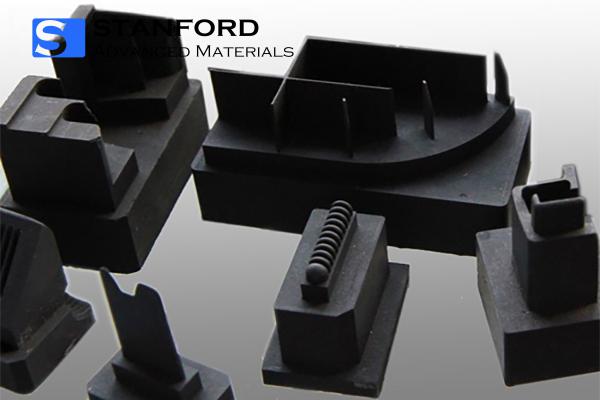

Graphite Electrode for EDM Description

Graphite Electrodes for EDM offer several advantages over other materials, making them the preferred choice for electrical discharge machining. They are easy to machine, have a lower density, exhibit slower wear rates, and maintain excellent mechanical properties at high temperatures. These characteristics make graphite highly suitable for EDM applications.

As a result, graphite has become the most widely used material for EDM electrodes. It is extensively utilized in production processes, mold making, general engineering, and micromachining, demonstrating its versatility and reliability across various industrial applications.

Graphite Electrode for EDM Specification

Graphite Electrode for EDM Applications

1. Precision Machining: Graphite electrodes are employed for the precise machining of complex shapes in hard materials, such as tool steels, titanium, and other metals. This makes them ideal for creating intricate components in the aerospace, automotive, and medical industries.

2. Mold and Die Manufacturing: In the production of molds and dies, graphite electrodes are used to create cavities and contours with high accuracy. This application is crucial for industries that rely on injection molding and stamping processes.

3. Electrode Manufacturing: Graphite is used to produce the electrodes themselves in EDM processes. The ability to easily shape and refine the electrodes allows for the creation of custom geometries tailored to specific machining tasks.

4. Tight Tolerances: The excellent conductivity and thermal stability of graphite electrodes enable EDM processes to achieve tight tolerances and smooth surface finishes, which are essential for high-quality parts.

5. High-Speed Machining: Graphite electrodes can withstand high temperatures generated during the EDM process, allowing for faster machining rates. This enhances productivity and efficiency in manufacturing processes.

6. Non-Destructive Testing: In some cases, graphite electrodes are used in non-destructive testing applications, where they help create detailed features on parts without causing damage, facilitating inspections and evaluations.

7. Repair and Maintenance: Graphite electrodes can be utilized in the repair of worn or damaged molds and tools, allowing for cost-effective maintenance by restoring the original geometry without the need for complete replacement.

Graphite Electrode for EDM Advantages

• Graphite is able to achieve electrode wear of less than 1% in relation to the depth of cut while working to more aggressive machine parameters. This means, unlike copper, the high amperage and longer on-times actually preserve the graphite electrode.
• Fine-grain graphite electrodes are able to deliver similar surface finishes to that copper while offering much faster speeds and vastly reduced electrode wear.
• Graphite is produced with a wide range of material characteristics, enabling you to match the electrode material properties to the EDM application.
• Significant cost savings can be made by choosing graphite over copper, generated through reduced machining times and speed of cut, less production time to create electrodes, faster EDM times, and better throughput from EDM machines.

Graphite Electrode for EDM Packing

Our Graphite electrode for EDM is carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.

Graphite Electrode for EDM FAQs

Q1: Which types of EDM machines are compatible with graphite electrodes?

A1: Graphite electrodes are compatible with almost all EDM machines, especially those used for high-speed machining or high-precision applications. Ensure the machine has proper dust collection and filtration systems for graphite particles.

Q2: What are the advantages of graphite electrodes compared to copper electrodes?

A2: Better electrical conductivity: Graphite electrodes offer superior electrical conductivity, improving machining efficiency.

Lighter weight: Graphite has about 1/5 the density of copper, making it easier to handle and install.

Easier to machine: Graphite is highly machinable, allowing for the production of complex electrode shapes.

High-temperature resistance: Graphite can withstand high temperatures without melting, unlike copper.

Q3: How should graphite electrodes be stored?

A3: Store in a dry, ventilated environment to prevent moisture absorption.

Avoid heavy loads on the electrodes to prevent cracking or deformation.

Keep them away from grease, acids, or alkalis, and maintain cleanliness.
