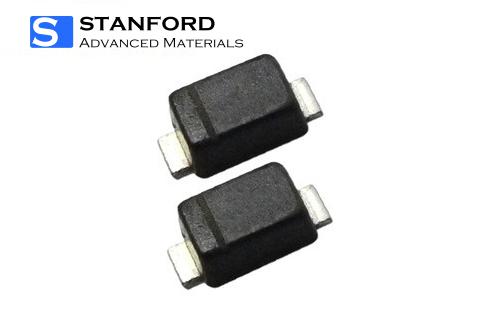

Low Forward Voltage Schottky Diodes from Stanford Electronics offer low forward voltage drop and fast switching, supporting high-efficiency electronic devices and power management systems. With extensive industry experience, SAM delivers reliable, high-performance solutions to the semiconductor and electronics markets.
Related Products: Miniature / SMD Schottky Diodes, Power Schottky Rectifiers, High-Frequency Schottky Diodes
Low Forward Voltage Schottky Diodes are fast-switching, energy-efficient components with minimal voltage drop and low power loss. They enhance efficiency and reduce heat in low-voltage, high-current applications, making them suitable for power supplies, clamping circuits, high-frequency electronics, automotive systems, and renewable energy devices.
Parameters
|
Type |
VRRM |
I(AV) |
IFSM |
VF |
IR |
Package |
||
|
V |
A |
A |
V |
IF (A) |
mA |
VR (V) |
||
|
SS12FL |
20 |
1 |
40 |
0.45 |
1 |
0.3 |
20 |
SMAF |
|
SS28BF |
80 |
2 |
55 |
0.7 |
2 |
0.3 |
80 |
SMAF |
|
SS220G |
200 |
2 |
50 |
0.95 |
2 |
0.3 |
200 |
SMA |
|
SKM32-AS |
20 |
3 |
80 |
0.38 |
3 |
1 |
20 |
SMA-HST |
|
SS210LBG |
100 |
2 |
50 |
0.6 |
2 |
1 |
100 |
SMB |
|
SK14WAL |
40 |
1 |
30 |
0.45 |
1 |
0.2 |
40 |
SOD-123FL |
|
SL1045DS |
45 |
10 |
150 |
0.5 |
10 |
0.05 |
45 |
TO-252 |
|
SK10U45MA |
45 |
10 |
150 |
0.5 |
10 |
0.1 |
45 |
TO-277 |
*The above product information is based on theoretical data. For more models and detailed inquiries, please contact us.
Low Forward Voltage Schottky Diodes are used in power supplies for rectifiers and output stages, improving efficiency and reducing power loss. They suit switching converters, including buck, boost, and flyback designs, thanks to fast recovery times. They provide reverse polarity protection in sensitive circuits, enhance energy conversion in solar inverters, and support efficient power control in automotive electronics such as ECUs, battery systems, and alternators.
Products are packed according to size, with small items in secure PP boxes and larger items in custom wooden crates. Proper cushioning ensures safe transport and protection during shipping.
Packaging: Carton, Wooden Box, or Customized.
Kindly review the packaging details provided for your reference.
Q1: What is a Low Forward Voltage Schottky Diode?
It is a semiconductor diode that conducts current with minimal voltage drop (typically 0.15–0.45 V) and supports high-speed switching with low power loss.
Q2: How does it differ from a regular diode?
Schottky diodes switch faster and have much lower forward voltage drops than standard PN-junction diodes, improving efficiency and reducing heat.
Q3: What are typical applications for Low Forward Voltage Schottky Diodes?
They are used in power supplies, battery chargers, voltage clamping, reverse polarity protection, and high-frequency converters such as buck and boost circuits.
|
Feature |
Low Forward Voltage Schottky Diodes |
Standard Schottky Diodes |
|
Forward Voltage Drop (VF) |
Typically 0.15V - 0.35V |
Typically 0.3V - 0.5V |
|
Power Loss |
Lower power loss |
Moderate power loss |
|
Efficiency |
Higher efficiency |
Good efficiency |
|
Heat Generation |
Less heat due to lower VF |
More heat at higher VF |
|
Applications |
Optimized for low-voltage, high-efficiency circuits |
General-purpose circuits |
|
Cost |
Slightly higher |
Standard/Lower cost |
Parameters
|
Type |
VRRM |
I(AV) |
IFSM |
VF |
IR |
Package |
||
|
V |
A |
A |
V |
IF (A) |
mA |
VR (V) |
||
|
SS12FL |
20 |
1 |
40 |
0.45 |
1 |
0.3 |
20 |
SMAF |
|
SS28BF |
80 |
2 |
55 |
0.7 |
2 |
0.3 |
80 |
SMAF |
|
SS220G |
200 |
2 |
50 |
0.95 |
2 |
0.3 |
200 |
SMA |
|
SKM32-AS |
20 |
3 |
80 |
0.38 |
3 |
1 |
20 |
SMA-HST |
|
SS210LBG |
100 |
2 |
50 |
0.6 |
2 |
1 |
100 |
SMB |
|
SK14WAL |
40 |
1 |
30 |
0.45 |
1 |
0.2 |
40 |
SOD-123FL |
|
SL1045DS |
45 |
10 |
150 |
0.5 |
10 |
0.05 |
45 |
TO-252 |
|
SK10U45MA |
45 |
10 |
150 |
0.5 |
10 |
0.1 |
45 |
TO-277 |
*The above product information is based on theoretical data. For more models and detailed inquiries, please contact us.
