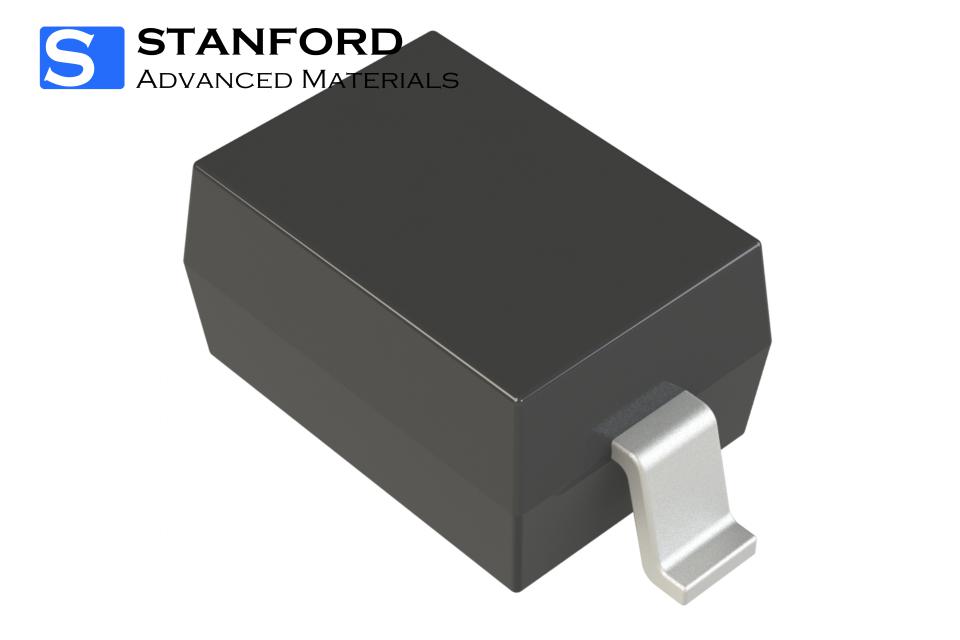

Miniature / SMD Schottky Diodes from Stanford Electronics deliver fast switching performance, low forward voltage drop, and compact surface-mount design—ideal for space-constrained, high-efficiency electronic circuits. As a trusted global supplier of advanced semiconductor components, Stanford Advanced Materials provides reliable, high-performance Schottky solutions for modern power management and consumer electronics applications.
Related Products: Low Forward Voltage Schottky Diodes, Power Schottky Rectifiers, High-Frequency Schottky Diodes
Parameters
|
Type |
VRRM |
I(AV) |
IFSM |
VF |
IR |
Package |
||
|
V |
A |
A |
V |
IF (A) |
μA |
VR (V) |
||
|
RB551V-30 |
30 |
0.5 |
2 |
0.54 |
0.5 |
100 |
20 |
SOD-323 |
|
BAT60B |
10 |
3 |
5 |
0.6 |
100 |
25 |
8 |
SOD-323 |
|
MSK4005 |
40 |
0.5 |
- |
0.49 |
0.5 |
150 |
40 |
SOD-523 |
|
MSK4010 |
40 |
1 |
- |
0.68 |
1 |
100 |
40 |
SOD-523 |
|
MSK4005D |
40 |
0.5 |
- |
0.52 |
0.5 |
50 |
40 |
SOD-882 |
|
MSK4010D |
40 |
1 |
3 |
0.58 |
1 |
100 |
40 |
SOD-882 |
*The above product information is based on theoretical data. For more models and detailed inquiries, please contact us.
Miniature / SMD Schottky Diodes are compact, surface-mount semiconductor devices designed for high-speed switching and low forward voltage drop applications. Engineered for space-limited designs, these diodes offer excellent efficiency and thermal performance, making them ideal for portable electronics, power management modules, and high-frequency circuits. Their small footprint allows seamless integration into modern surface-mount technology (SMT) assemblies, while their fast recovery time and low power loss enhance overall circuit performance. Commonly used in smartphones, wearable devices, automotive ECUs, and DC-DC converters, SMD Schottky diodes are essential for efficient and reliable energy control in today's miniaturized electronics.
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden Box, or Customized.
Kindly review the packaging details provided for your reference.
Q1: What are Miniature / SMD Schottky Diodes?
These are compact, surface-mount diodes that use a Schottky barrier for fast switching and low forward voltage drop, designed for space-saving and energy-efficient electronic applications.
Q2: How do they differ from standard Schottky diodes?
Miniature/SMD versions are smaller in size and designed for surface-mount technology (SMT), allowing easy integration into compact PCBs while maintaining high performance.
Q3: What are the main benefits of using SMD Schottky diodes?
They offer high-speed switching, low power loss, low heat generation, and a small footprint—ideal for modern compact electronic devices.
|
Feature |
Miniature / SMD Schottky Diodes |
Standard Schottky Diodes |
|
Package Type |
Surface-Mount (e.g., SOD, SOT, SMA, SMB) |
Through-Hole or larger SMT (e.g., TO-220, DO-41) |
|
Size |
Very compact, optimized for space-limited PCBs |
Larger footprint, less suited for miniaturized designs |
|
Installation |
Automated SMT assembly compatible |
Mostly manual or wave soldering (for through-hole) |
|
Forward Voltage Drop (VF) |
Low (typically 0.15V - 0.45V) |
Similar range (0.2V - 0.5V), depends on design |
|
Switching Speed |
Very fast |
Fast |
|
Thermal Performance |
Limited heat dissipation due to small size |
Better heat handling (especially with TO packages) |
|
Power Handling |
Lower power ratings (ideal for portable electronics) |
Higher power ratings (suitable for power supplies) |
|
Applications |
Smartphones, wearables, automotive ECUs, LED drivers |
Power supplies, rectifiers, voltage clamping circuits |
