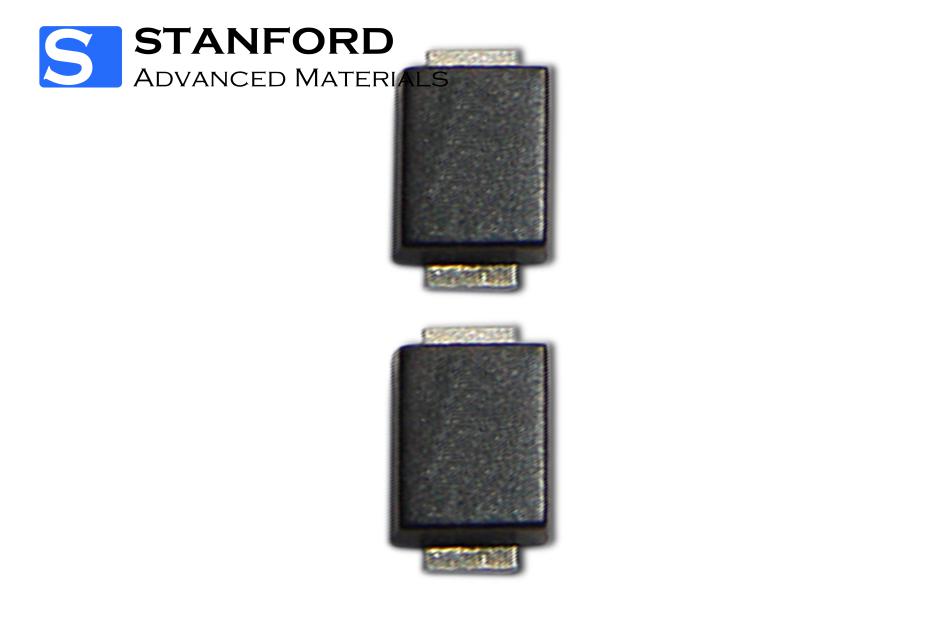

Stanford Electronics offers high-quality Power Schottky Rectifiers designed for low forward voltage drop and fast switching performance. Ideal for power supplies, inverters, and energy-efficient systems, SAM's Schottky rectifiers ensure reliable and efficient power management.
Related Products: Low Forward Voltage Schottky Diodes, Miniature / SMD Schottky Diodes, High-Frequency Schottky Diodes
Parameters
|
Type |
PIN ARRAY |
VRRM |
I(AV) |
IFSM |
VF |
IR |
Package |
||
|
V |
A |
A |
V |
IF (mA) |
mA |
VR (V) |
|||
|
MBR10100L-T |
- |
100 |
10 |
- |
0.68 |
10 |
30 |
100 |
TO-220 |
|
MBR40100CT |
Common Cathode |
100 |
40 |
250 |
0.85 |
40 |
0.05 |
100 |
TO-220 |
|
MBR10200CTF |
Common Cathode |
200 |
10 |
100 |
0.92 |
10 |
0.05 |
200 |
TO-220F |
|
MBR3060CTF |
Common Cathode |
60 |
30 |
200 |
0.75 |
30 |
0.1 |
60 |
TO-220F |
*The above product information is based on theoretical data. For more models and detailed inquiries, please contact us.
Power Schottky Rectifiers are efficient semiconductor diodes with fast switching and low forward voltage drop. Using a metal-semiconductor junction, they minimize energy loss in high-frequency circuits. Commonly used in DC-DC converters, power supplies, chargers, and solar inverters, they offer reliable performance with low heat in medium to high-current systems.
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden Box, or Customized.
Kindly review the packaging details provided for your reference.
Q1: What is a Power Schottky Rectifier?
A: A Power Schottky Rectifier is a type of diode that uses a metal-semiconductor junction for rectification. It offers low forward voltage drop and fast switching speed, making it ideal for high-efficiency power applications.
Q2: How is it different from a standard diode?
A: Unlike standard PN-junction diodes, Schottky diodes have lower forward voltage (typically 0.2-0.5 V) and faster response time, resulting in reduced power loss and heat.
Q3: What are typical applications?
A: Power Schottky Rectifiers are widely used in DC-DC converters, AC-DC power supplies, solar inverters, battery chargers, LED lighting, and automotive electronics.
|
Feature |
Power Schottky Rectifiers |
Standard Schottky Diodes |
|
Forward Current Rating (IF) |
High (up to 100A or more) |
Low to moderate (typically <5A) |
|
Forward Voltage Drop (VF) |
Low (0.3V-0.6V) |
Very low (0.2V-0.45V) |
|
Reverse Voltage Rating (VR) |
Higher (up to 200V or more) |
Typically lower (<100V) |
|
Switching Speed |
Very fast |
Very fast |
|
Surge Current Capability |
High (robust for power spikes) |
Low to moderate |
|
Reverse Leakage Current |
Higher than PN diodes, but optimized in power designs |
High, especially at elevated temperatures |
|
Package Types |
TO-220, etc. (for power handling) |
DO-41 (small signal packages) |
|
Thermal Performance |
Designed for heat dissipation and higher reliability |
Not ideal for high thermal loads |
|
Applications |
Power supplies, inverters, chargers, automotive |
Signal rectification, small DC circuits, protection |
Parameters
|
Type |
PIN ARRAY |
VRRM |
I(AV) |
IFSM |
VF |
IR |
Package |
||
|
V |
A |
A |
V |
IF (mA) |
mA |
VR (V) |
|||
|
MBR10100L-T |
- |
100 |
10 |
- |
0.68 |
10 |
30 |
100 |
TO-220 |
|
MBR40100CT |
Common Cathode |
100 |
40 |
250 |
0.85 |
40 |
0.05 |
100 |
TO-220 |
|
MBR10200CTF |
Common Cathode |
200 |
10 |
100 |
0.92 |
10 |
0.05 |
200 |
TO-220F |
|
MBR3060CTF |
Common Cathode |
60 |
30 |
200 |
0.75 |
30 |
0.1 |
60 |
TO-220F |
*The above product information is based on theoretical data. For more models and detailed inquiries, please contact us.
